Blinds and light control

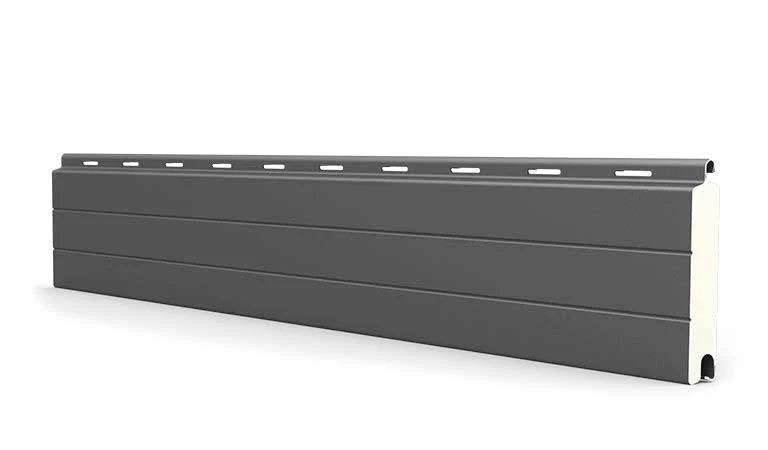

Purobert i45R

Aluminium slat with a 9.4 mm profile, with a coverage of 44.3 mm. Maximum recommended width in catalogue: 260 cm. Box, guides and motor are selected according to the panel.

Purobert i45C

Aluminium slat with a 9.3 mm profile, with a coverage of 45 mm. Maximum recommended width in catalogue: 220 cm. Box, guides and motor are selected according to the panel.

Purobert i50C

Aluminium slat with an 11 mm profile, with a coverage of 50 mm. Maximum recommended width in catalogue: 320 cm. Box, guides and motor are selected according to the panel.

Purobert i55C

Aluminium slat with a 12.8 mm profile, with a coverage of 55 mm. Maximum recommended width in catalogue: 460 cm. Box, guides and motor are selected according to the panel.

Purobert Airblock

Slat of 9.3 mm and coverage of 44.7 mm with an intermediate perforated profile to regulate ventilation and light entry.

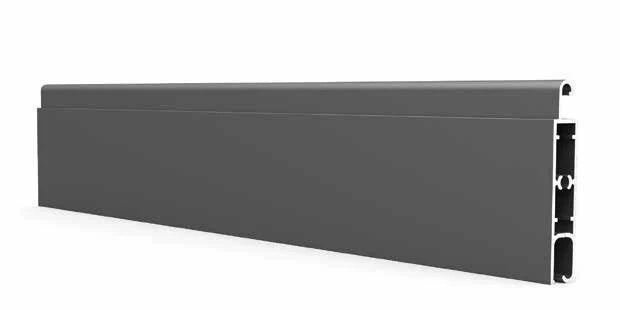

Purobert i45RE

Extruded aluminium slat of 10 mm and coverage of 46 mm. Solution with greater mass than a profiled slat; requires sizing of axis and drive.

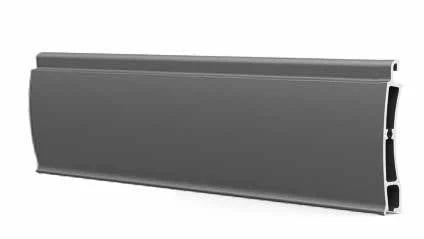

Purobert i40CE

Extruded aluminium slat of 8.7 mm and coverage of 40.7 mm.

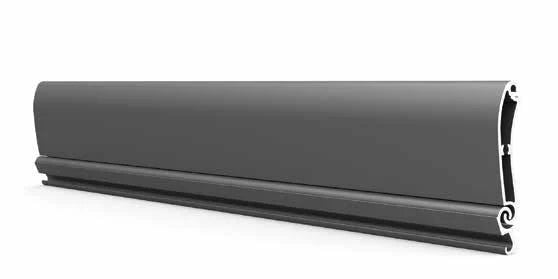

Purobert Autoblocante C

Extruded aluminium slat with self-locking geometry, thickness of 10.2 mm and coverage of 44.5 mm.

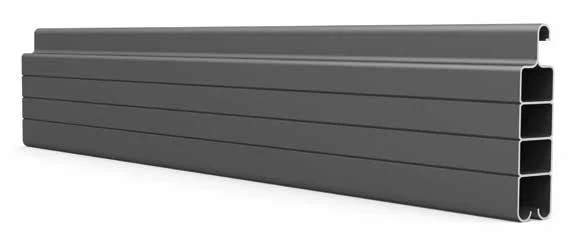

Purobert i50C PVC

PVC slat of 13.5 mm and coverage of 50 mm. Maximum recommended: 230 cm wide and 300 cm high.

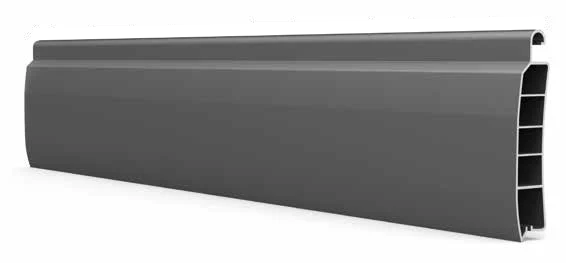

Purobert i45R PVC

PVC slat of 14.5 mm and coverage of 45 mm. Maximum recommended: 220 cm wide and 300 cm high.

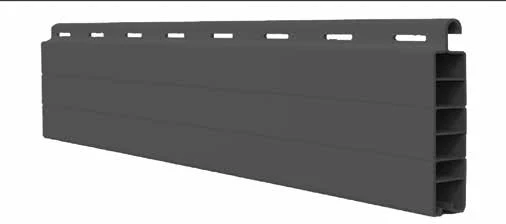

Purobert i43C PVC

PVC slat of 7.8 mm and coverage of 43 mm. Maximum recommended: 160 cm wide and 280 cm high.

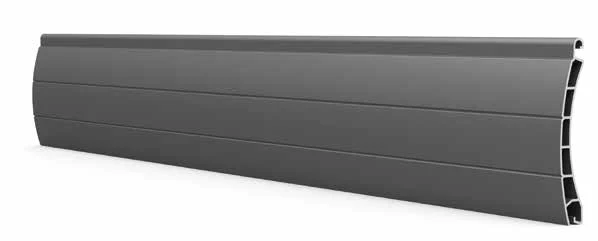

Purobert 40 × 9 PVC

PVC slat with a coverage of 40 mm. Maximum recommended: 180 cm wide and 280 cm high.

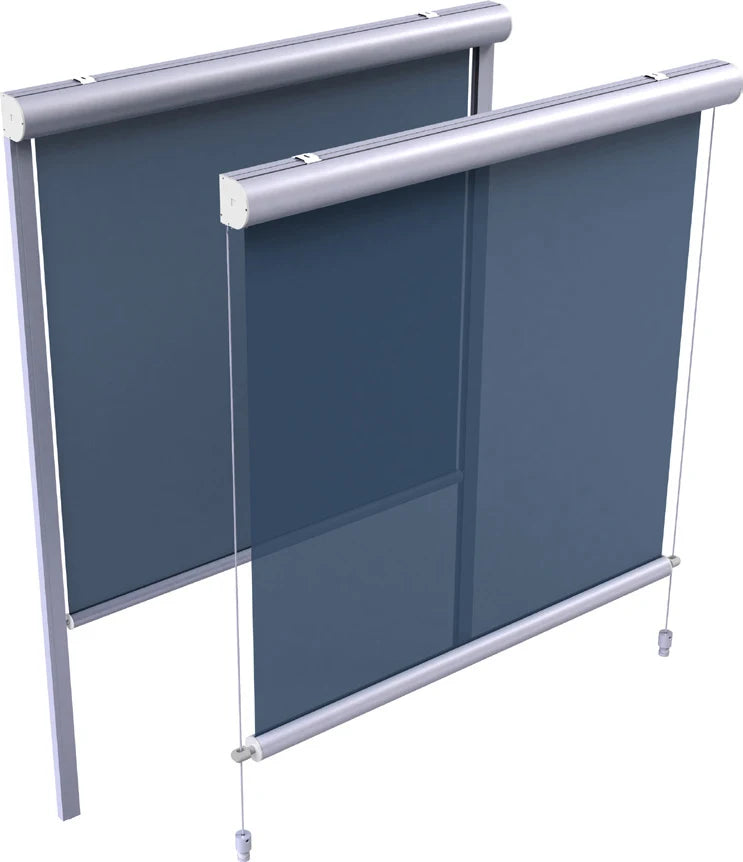

Purobert Refleksol

Interior or exterior solar protection blind. Technical fabric and manual or motorised operation depending on the selected system.

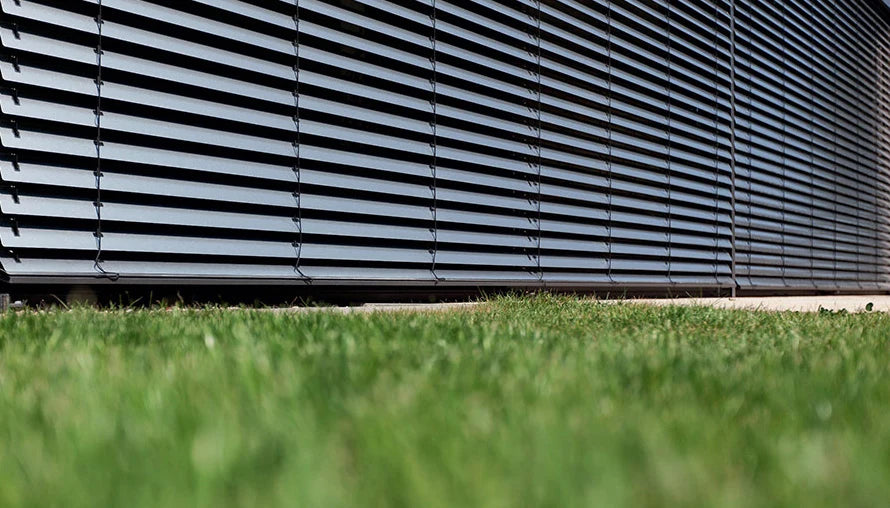

Purobert Raffstore

Exterior shutter with adjustable aluminium slats of type C or Z. Guides and box adapt to the facade; manual or automatic operation.

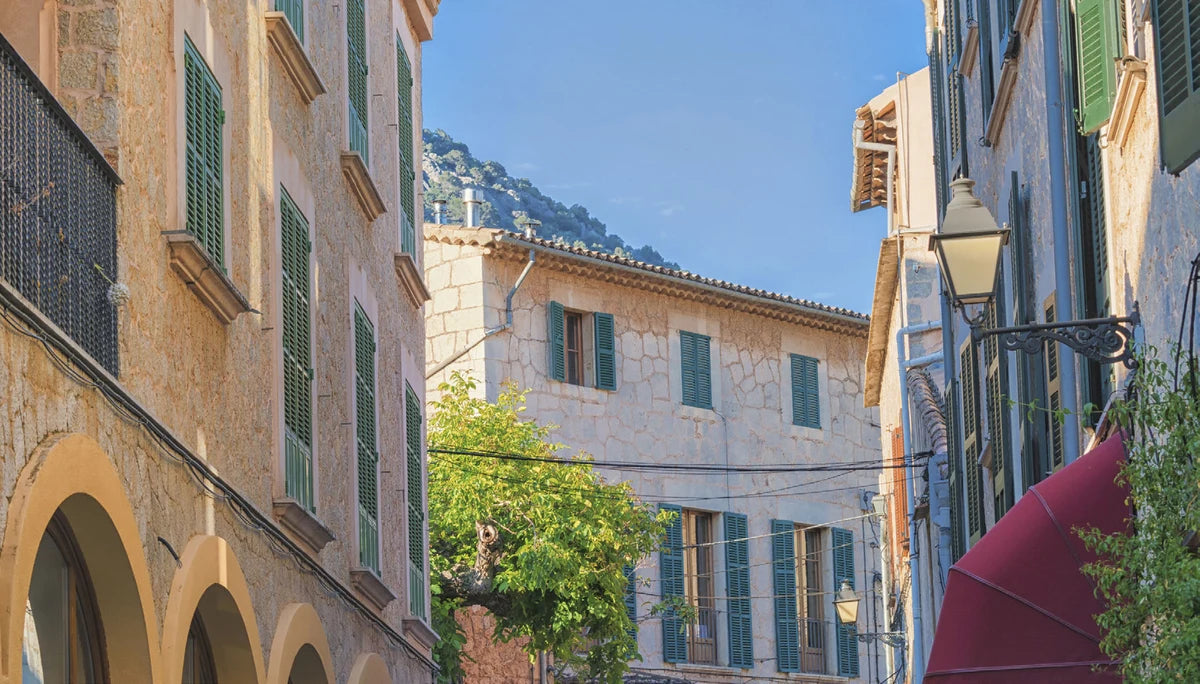

Shutters

Shutters on a 48 mm profile. Fixed slats, closed fixed slats or adjustable slats, with fittings and finish to be defined.

Alicante blinds

Traditional roll-up blind in white or coloured PVC, natural wood or painted wood.

Vertical roll-up insect screen

Classic 45 mm headbox or 42 mm with automatic closure. Wind-resistant guides and optional brake. Maximum recommended: 170 cm wide and 240 cm high.

Side insect screen

Side roll-up and 45 mm headbox with wind-resistant guide. The catalogue recommends up to 110 cm wide and 220 cm high for the indicated configuration.

Double side insect screen

Two modules with central meeting point for wider openings. Dimensions of each module and closing direction to be confirmed.

Fixed insect screen

Fixed frame; pressure pre-frame option. Maximum recommended width of 160 cm and central crossbar for heights over 170 cm.

Sliding insect screen

Frameless sliding with 2.5 cm Z profile. Maximum recommended width of 140 cm and crossbar for heights over 170 cm.

Ipanema pleated insect screen

Side-shift pleated mesh. Configurations of one panel, two panels or one XL panel.

Caterpillar insect screen

Displacement via bottom chain, no fixed profile on the floor to obstruct passage.

Hinged insect screen

Operable leaf with return spring. Options for multiple leaves and pet door depending on configuration.

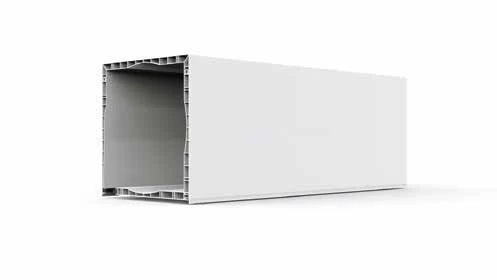

Drawers and guides

Compact and external drawers, lids, end panels and guides. The choice depends on available space, roll diameter and access for maintenance.

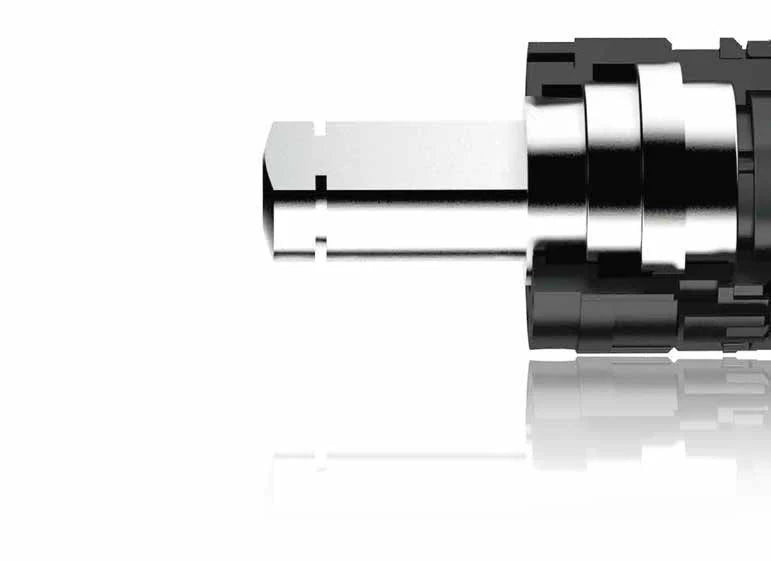

Blind operation

Tubular motors and controls; manual alternatives with tape, winch or crank. Shafts, pulleys, collectors, locking ties, supports and buffers to complete the set.

30 / 40 / 50 / 80 kg · BGM Gaviota
